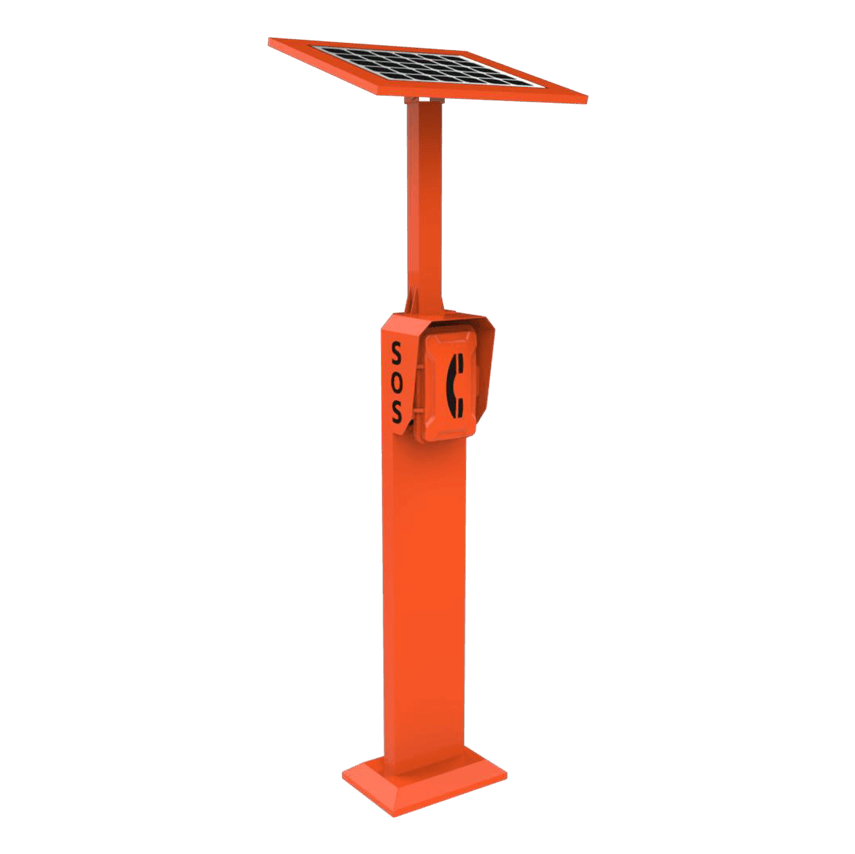

Solar Panel

Features :

  • Solar panels and batteries are sized according to the installation location. A charger, batteries and other equipment mount inside the tower.
  • Attention-getting LED Blue Light is included and mounted atop the unit. The LED Blue Light is continuously lit and flashes for duration of a call when “EMERGENCY” button is pressed to draw attention to the unit.
  • LED Blue Light is housed in a protective poly carbonate housing
  • Emergency Phone face plate is made of brushed stainless steel.with security screw.
  • Vandal-resistant structure and coating designed to resist extreme weather conditions
  • A variety of signage, graphics and color choices are available
  • ADA-compliant
Frequency Band Quad-Band:GSM/GPRS/EDGE 850/900/1800/1900MHz
Dual-Band: UMTS/HSDPA 900/2100MHz
Transmitting Power Class 4(2 Watt) at GMS 850MHz and 900MHz
Class (1 Watt) at DCS 1800MHz and PCS 1900MHz
LED Indicators GSM Status Display
Speaker Output 9 adjustable volume levels
Microphone Input 9 adjustable volume levels
Adjust the volume automatically The environment and SMS Control
Relay Output 1 relay output (Normal-close) for door lock
Power Supply Input voltage DC 6V to 16V
Power Consumption Standby: < 12V / 30mA
Working < 12V / 200mA
Operating Temperature -35°C ~ +80°C
Remote Programming Support SMS Programming
CPU Board Module 100,000 hr (12yr) (min)
Certificate CE
Protection Rating IP65-IP66


Let our helpful sales team assist in matching your project requirements to the features of our IP communication systems.
